SPECIFICATIONS

Brand Name: SENSKY

Certification: RoHS,CE,ce,ROHS

Choice: yes

Delay time: Default 10s,10sec~7min adjustable

Detection Moving Speed: 0.6-1.5m/s

Features: Pir Sensor Switch

High-concerned chemical: None

Induction Range: 360 degree ,6M

Installation Height: 2.2-4m

Is Smart Device: No

Item Type: SWITCHES,Pir Sensor Switch

Material: Plastic

Model Number: 045

Origin: Mainland China

Sensitivity: Default 5LUX,3LUX~2000LUX adjustable ,Can be work during the day

Switch Type: Sensor Switch

Warranty: 1month

Working Temperature: -20~40 ℃

Working voltage: 110-240VAC

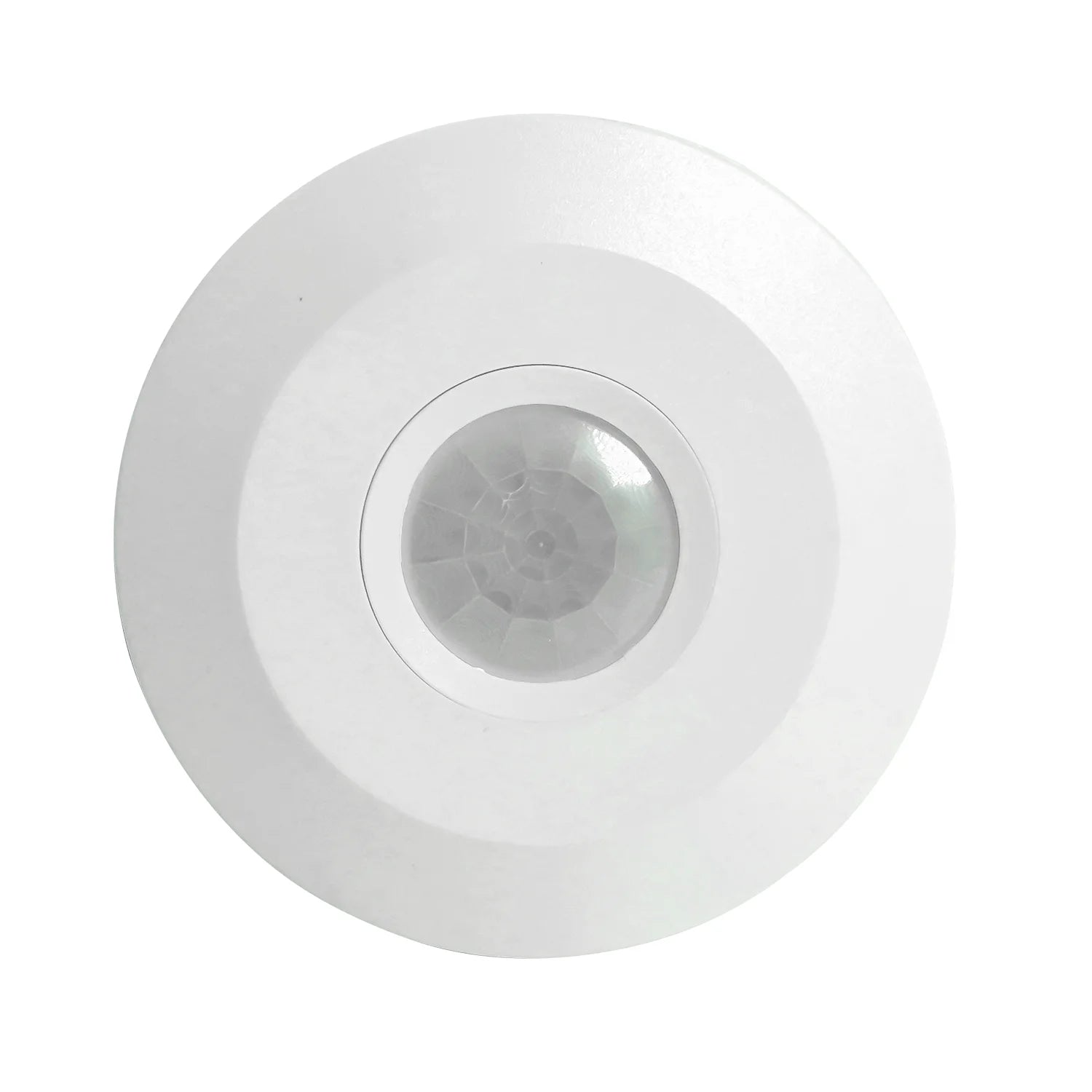

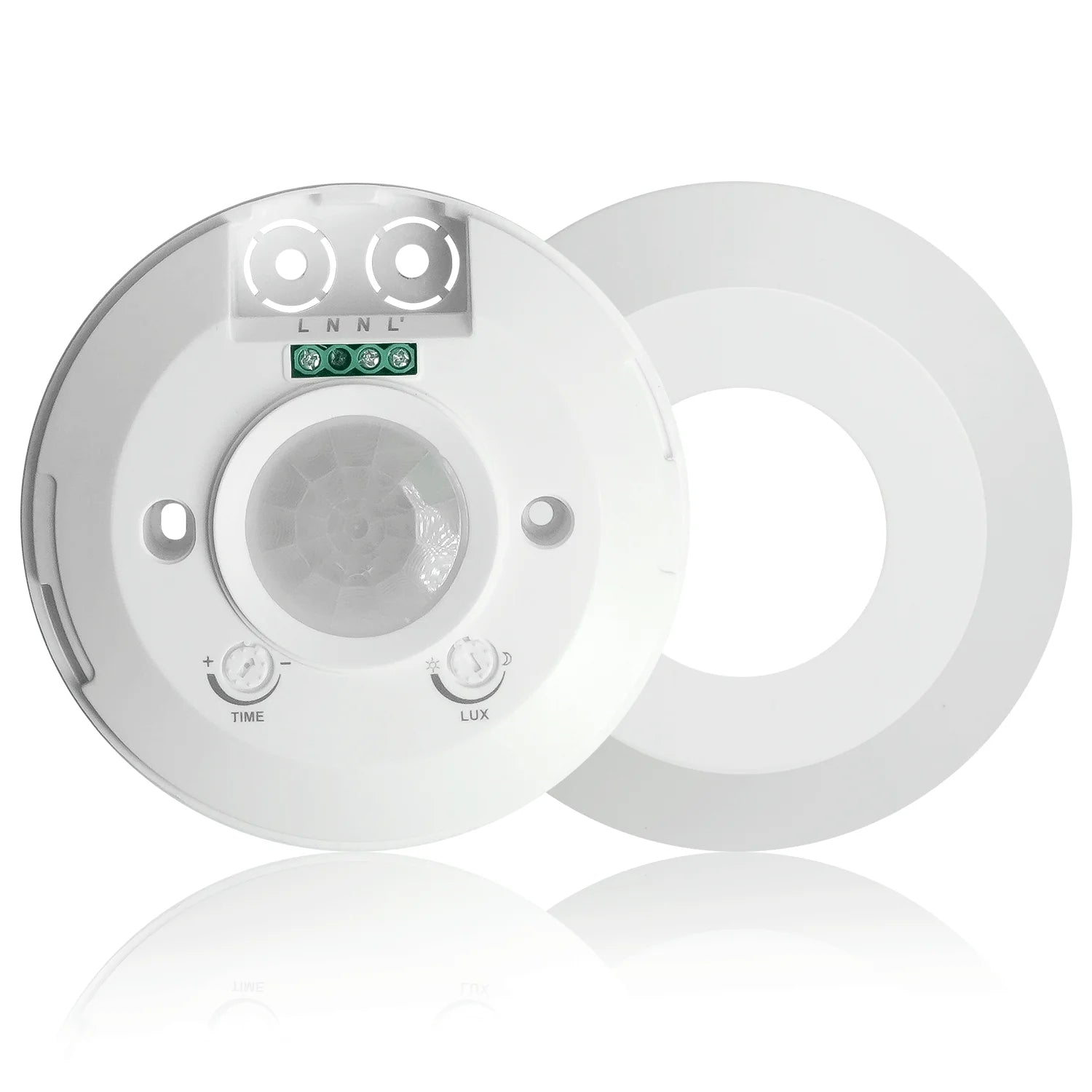

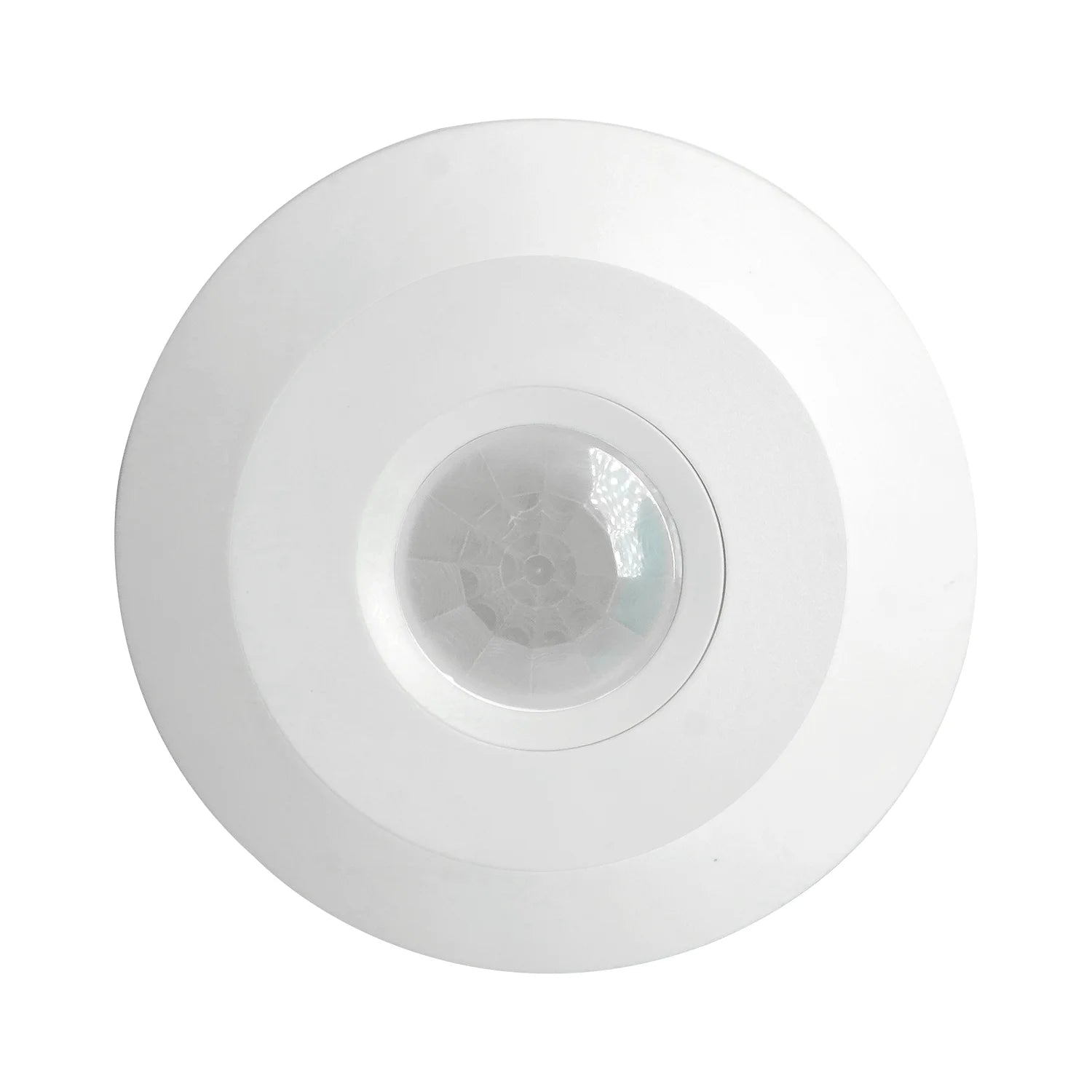

Original Ceiling Mounted PIR Motion Sensor Light Switch 110~220VAC

Time Delay Adjustable Ambient Light Adjustable

Description:

The PIR Sensor Switch detects PIR body heat and automatically switches the light ON and turning it OFF again ,

PIR sensor switch Combined intelligent control and energy saving, it wildly used in aisles, basements, restrooms, etc.

Performance Characteristics:

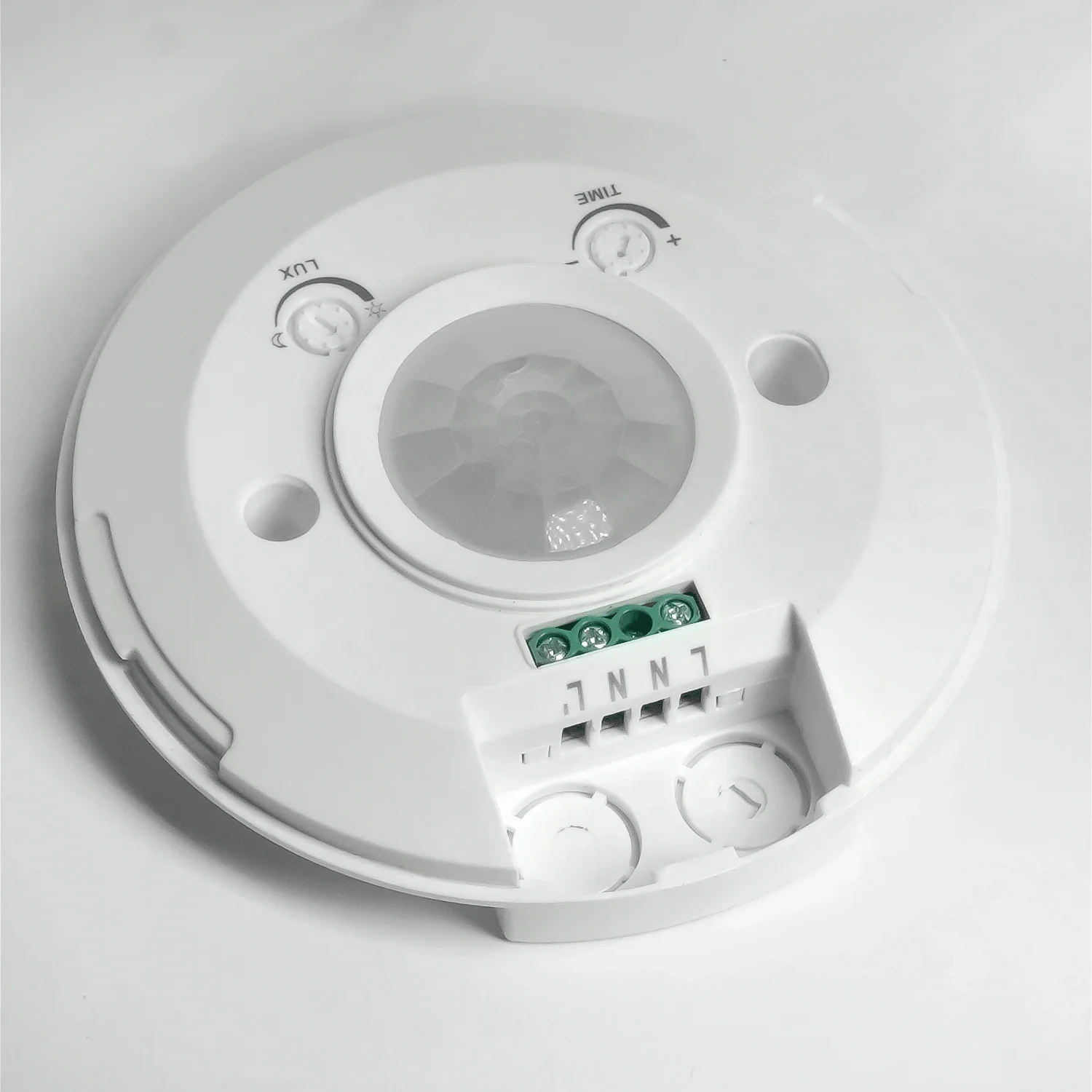

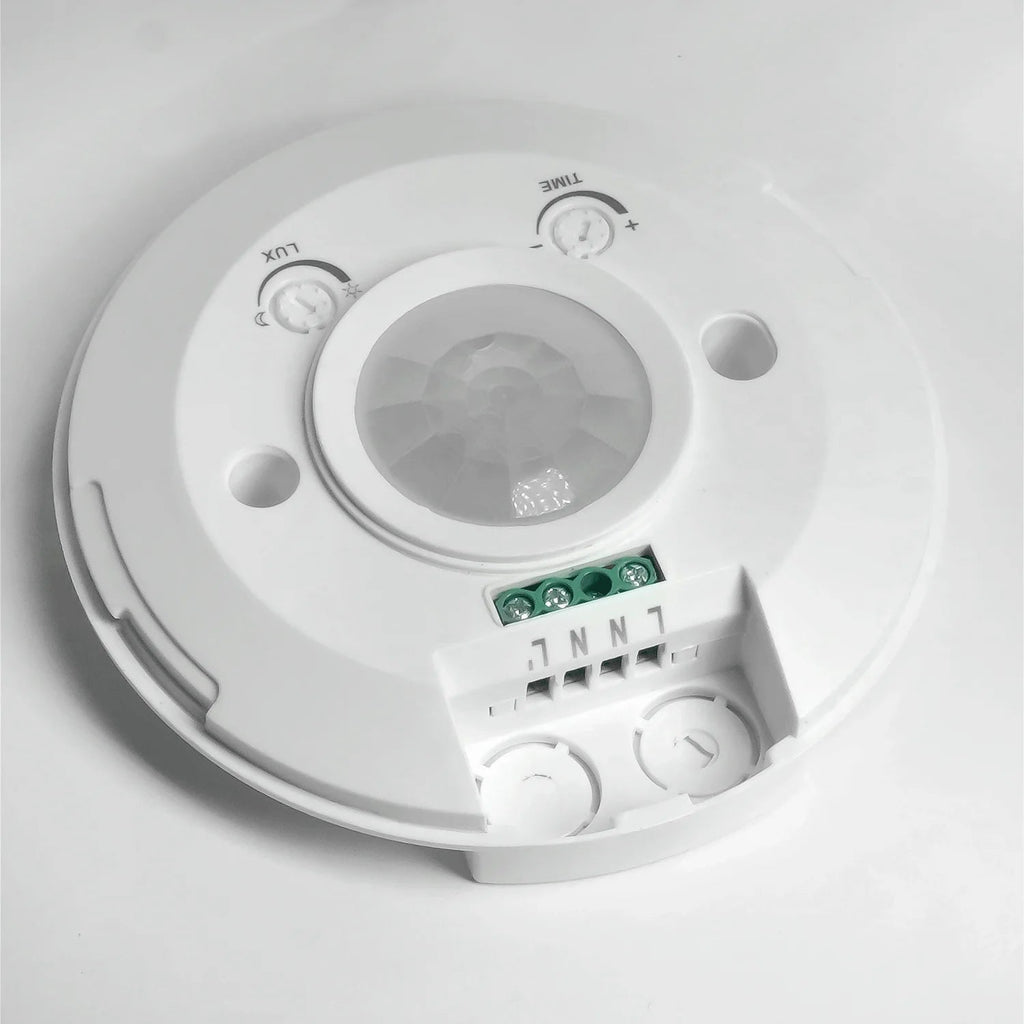

1. Main supply live line connect LIN, Null line connect between LOUT and N, without any accessories, internal without batteries.
2. The switch suitable for various types of load (all kind of Incandescent lamp, energy saving lamps , fluorescent lamps LED fluorescent lamp), load power≤200W.
3. Adopted specific integrated circuit, stable work, strong anti-interference capability.
4. Reliable quality, switch life can reach more than 20 million times.

Specification:

1.


2. 100%Brand New

3. Operating voltage: 110VAC~240VAC   50/60Hz

4. Power consumption: <0.02W

5. Load power: 1200W (incandescent lamp) 300W (energy-saving lamp)

6. Sensitivity : Default 3LUX,3LUX~2000LUX adjustable ,Can be work during the day

7. Delay time: Default 10s,10sec~7min adjustable

8. Induction distance: 360 degree ,6M

9. Sensing method:passive

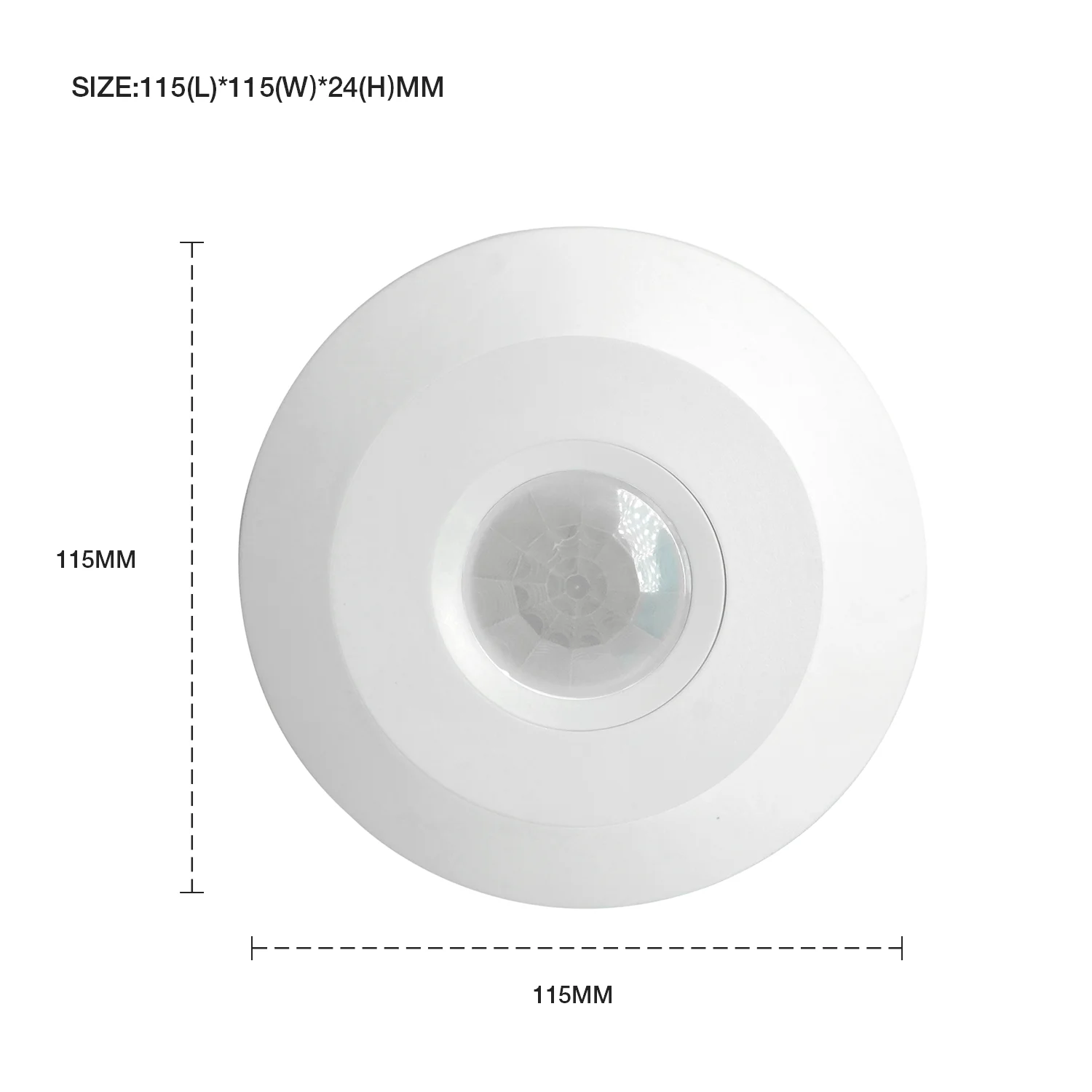

10. Size: 115*115*24MM
